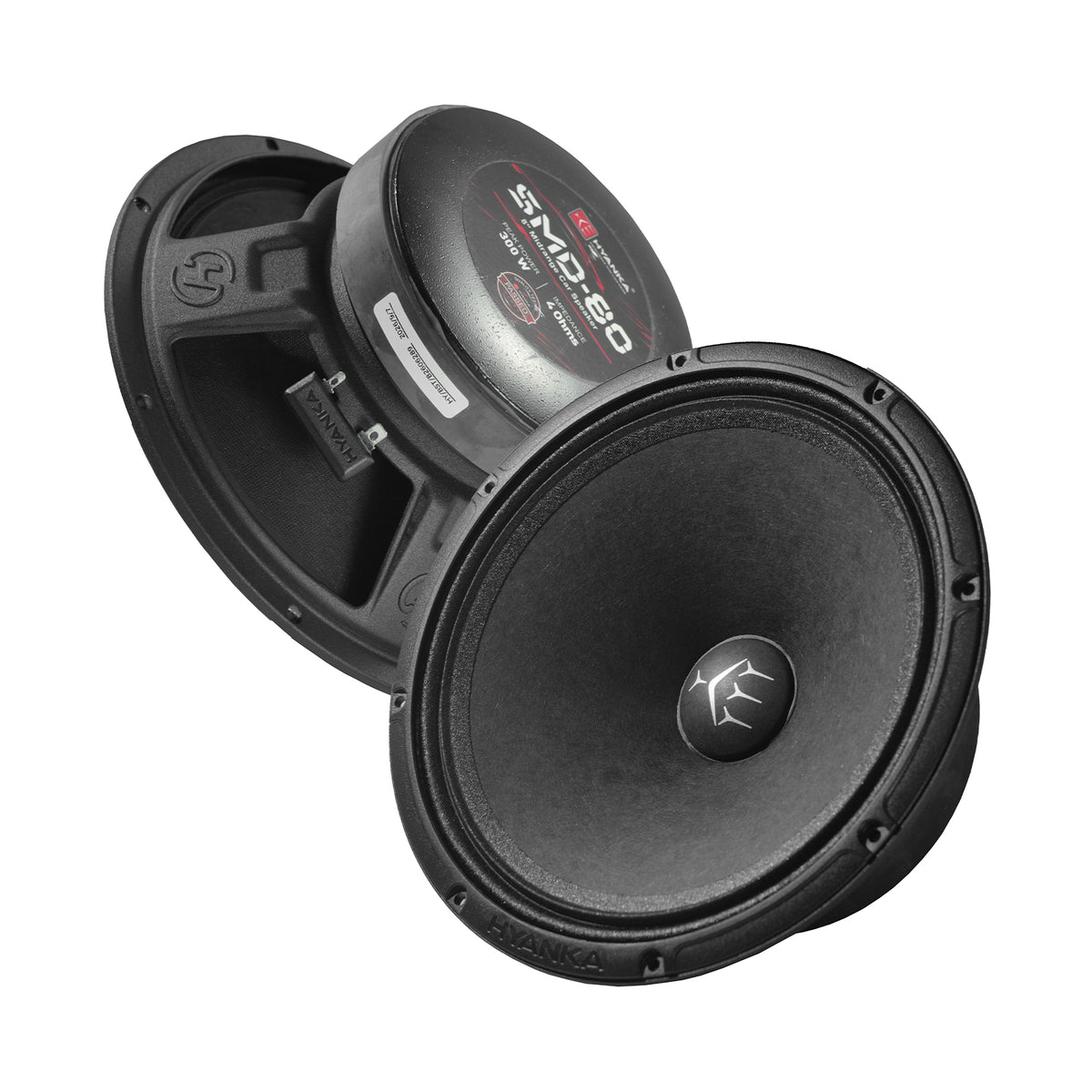

SMD-80 | 8" Midrange Car Speakers 150 Watts RMS 4-Ohm - Pair
SMD-80 | 8" Midrange Car Speakers 150 Watts RMS 4-Ohm - Pair
Extended Frequency Coverage: An 80 Hz–15 kHz frequency response covers a broad range of vocals and instruments, bringing midrange presence and upper-frequency detail to your car audio build.

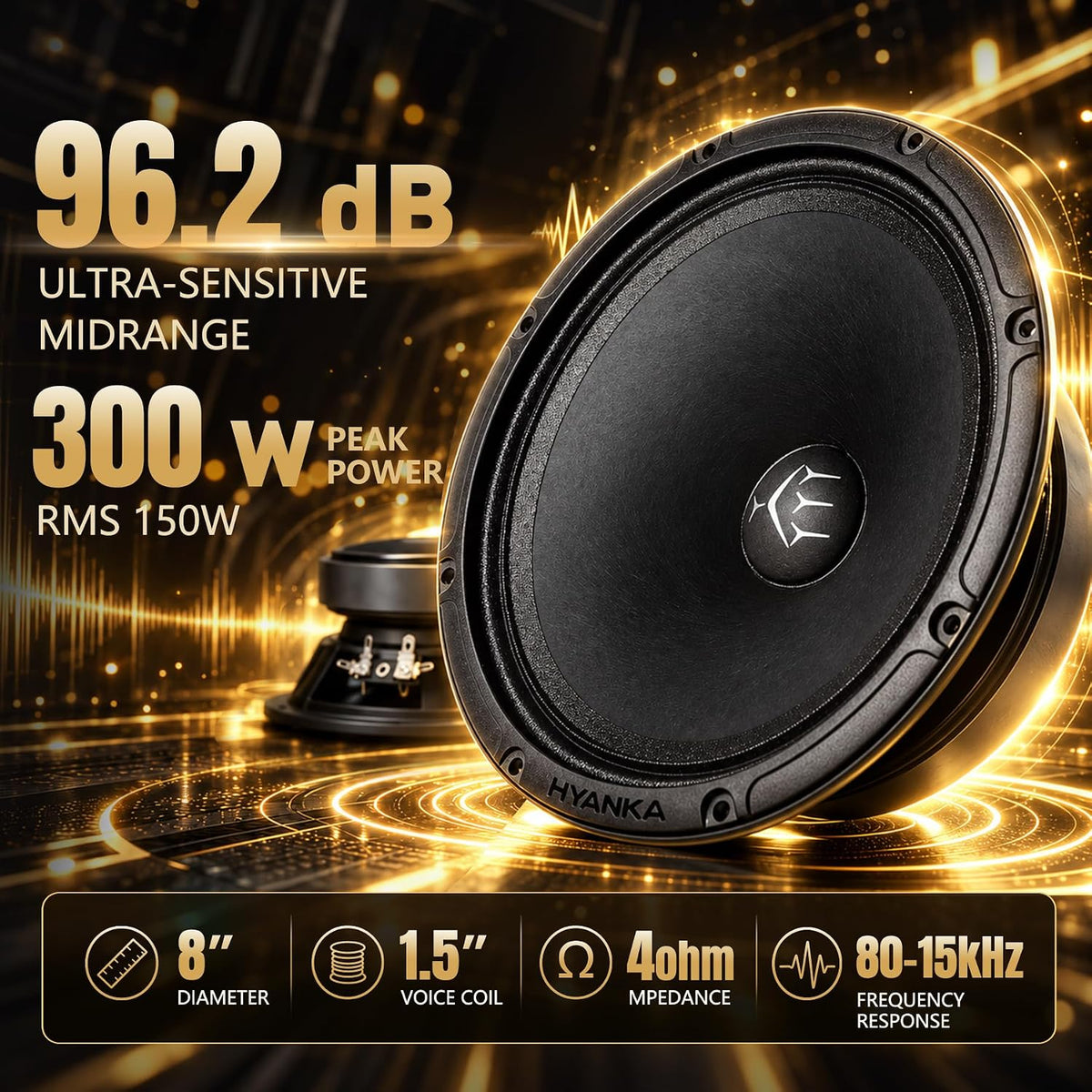

High Sensitivity, Strong Output: With 96.2dB sensitivity and 150W RMS / 300W peak power handling, the SMD-80 midrange car speaker makes efficient use of amplifier power for lively, dynamic playback.

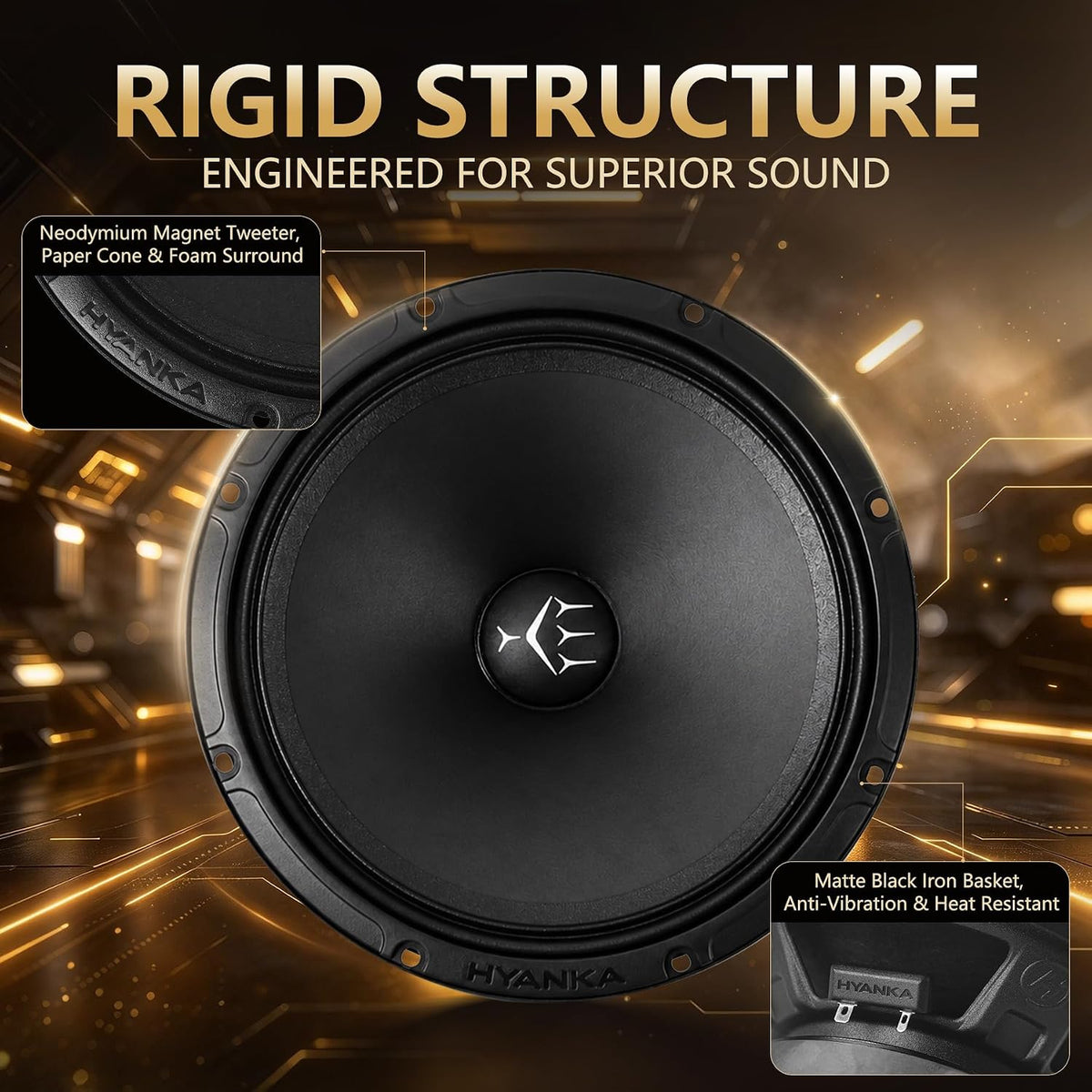

Built for Everyday Performance: A pressed paper cone with cloth surround supports responsive sound reproduction, while a rigid iron basket, Y30 magnet and 1.5-inch KSV voice coil provide a dependable foundation.
A Practical Start for Custom Builds: Designed for enthusiasts seeking dedicated midrange performance, this 8-inch, 4-ohm midrange car speaker integrates into compatible amplified systems alongside tweeters and a subwoofer.
Couldn't load pickup availability
- Free Shipping
- 90-Day Returns
- 1-Year Warranty
Key Features
Key Features
- 150W RMS / 300W Peak Power Handling
- 96.2 dB Sensitivity
- 1.5" Voice Coil
- Black Iron Basket
- Sold as a Pair
Specifications
Specifications
- Nominal Impedance: 4 Ohms
- RMS Power: 150 W
- Peak Power: 300 W
- Sensitivity (1W/1m): 96.2 dB
- Frequency Response: 80 Hz–15 kHz
- Voice Coil Diameter: 1.5 inches
- Voice Coil Type: KSV
- Magnet Grade: Y30
- Magnet Dimensions (Diameter × Thickness): Ø130 × 20 mm (Ø5.12 × 0.79 inches)

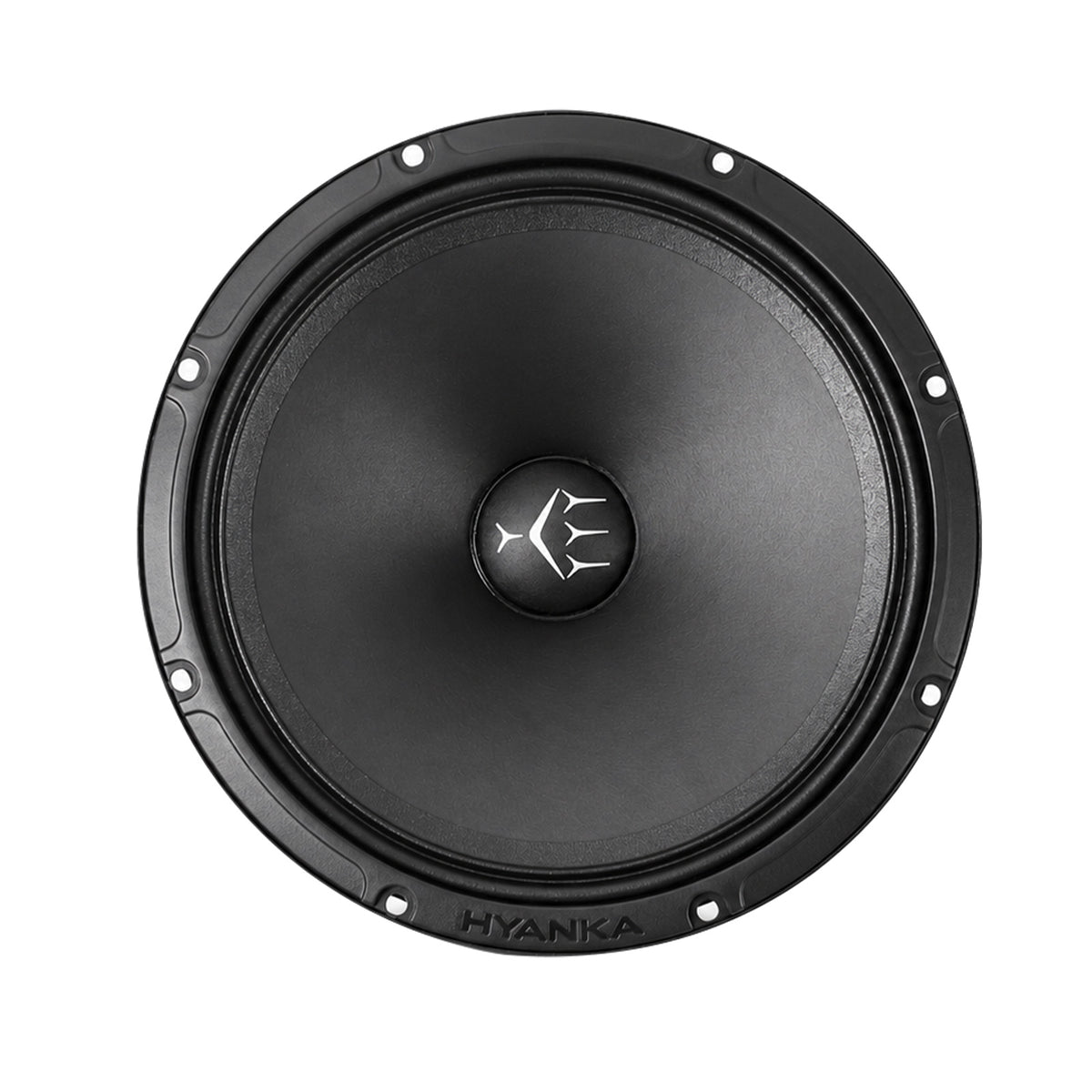

- Cone Material: Pressed Paper
- Surround Material: Cloth
- Basket Material: Iron
- Basket Color: Black

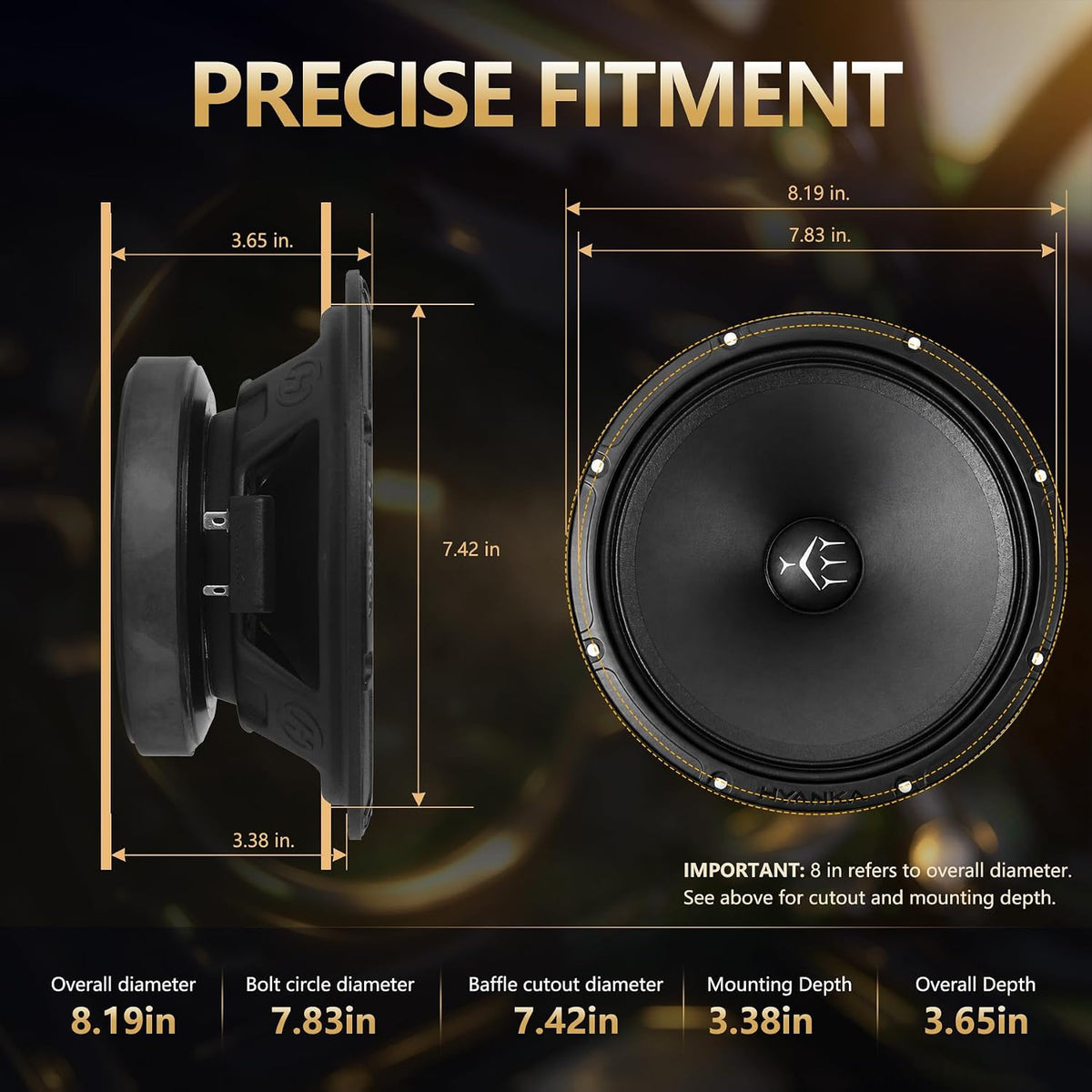

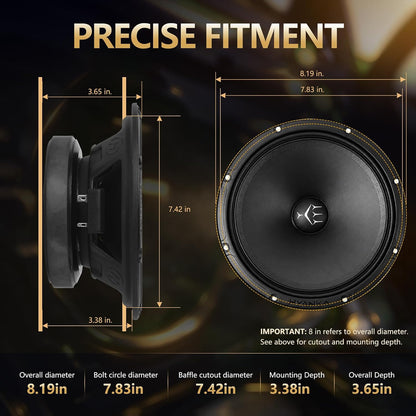

Product Size
Product Size
- Overall Diameter: 8.19 inches
- Bolt Circle Diameter: 7.83 inches
- Baffle Cutout Diameter: 7.42 inches
- Mounting Depth: 3.38 inches
- Overall Depth: 3.65 inches
- Net Weight (Each): 5.64 lbs
- Shipping Dimensions (W × H × D): 18.50 × 4.33 × 9.25 inches
- Shipping Weight: 12.81 lbs
Amplifier Matching
Amplifier Matching
/

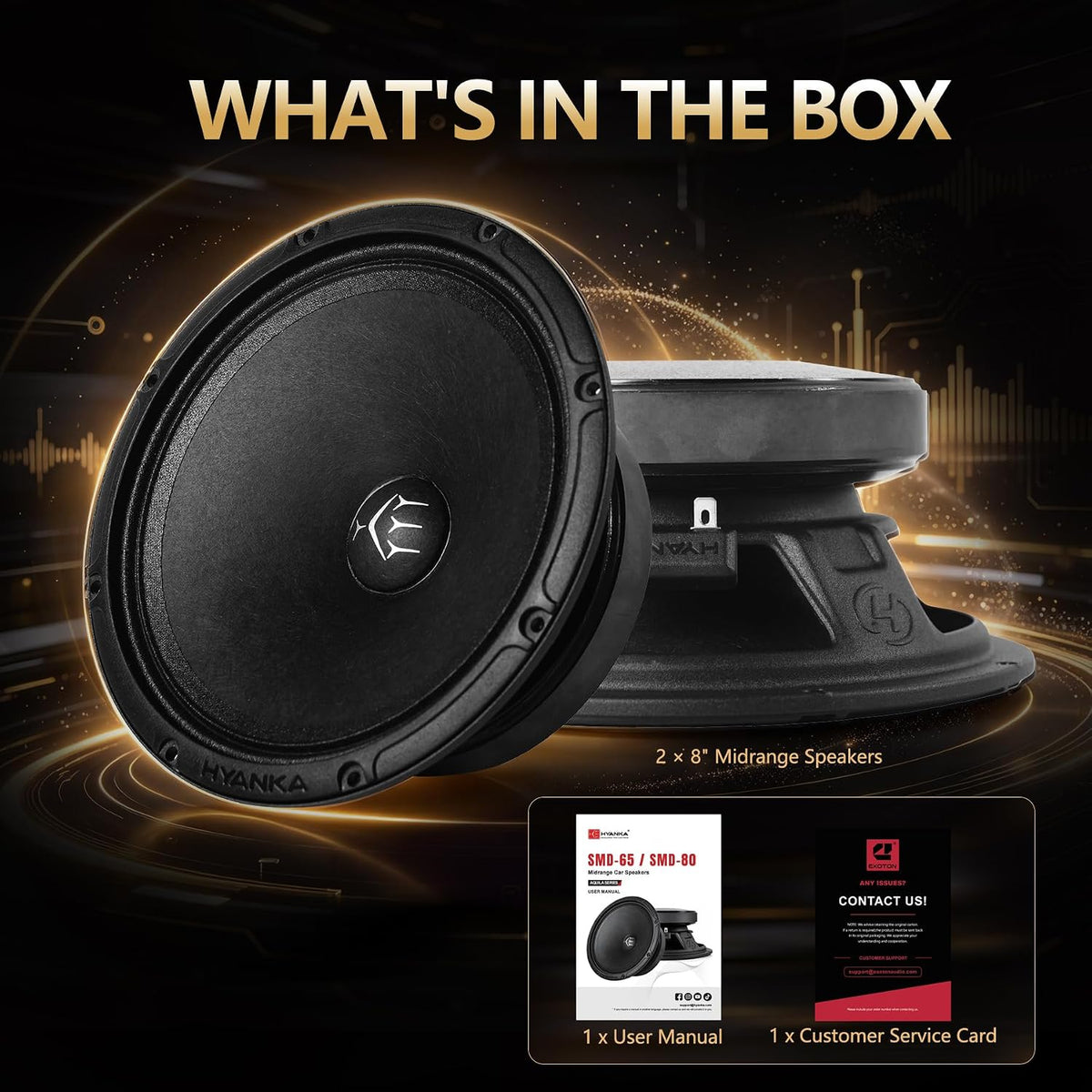

What's In The Box?
What's In The Box?
- Midrange Speaker × 2
- User Manual × 1
- Customer Service Card × 1
